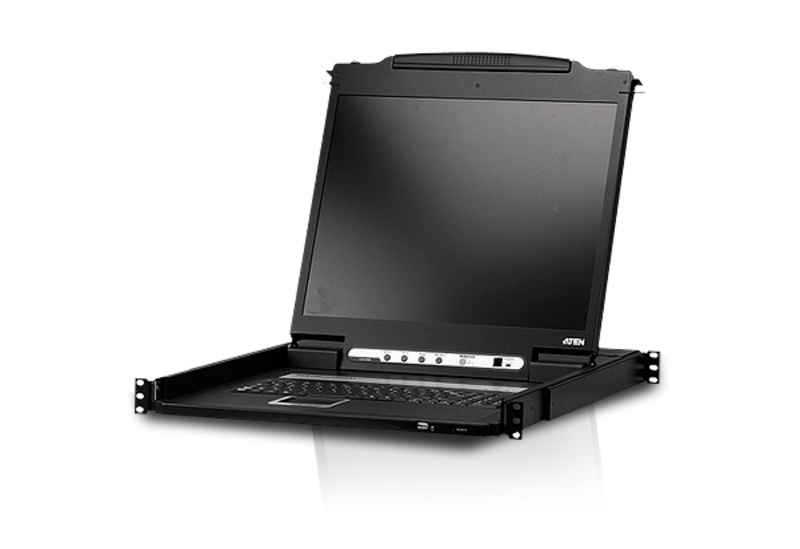

CL6700N Aten 19″ USB and DVI LCD Console

Description The CL6700N DVI LCD Console is a LCD KVM console featuring an integrated 19″ DVI LCD panel, a full keyboard, and a touch pad in a 1U rack-mountable sliding housing with audio support. The CL6700N serves as the front end sliding console for compatible DVI KVM switches. This means users who already have a compatible KVM switch can take advantage of the space saving and efficiency benefits of the sliding console module without having to purchase a KVM switch module. For added convenience, a port for an external USB mouse is provided on the CL6700N front panel, while ports for an extra console (USB mouse, USB keyboard, DVI monitor and VGA monitor) for a second user are provided on the rear panel. DiagramFeaturesSpecificationsPackage Contents Integrated KVM console with a 19″ DVI LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack Standard rack mount kit included – optional Easy Rack Mounting (single person installation) rack mount kit available (requires separate purchase) Supports an external console with USB / DVI / VGA connectors Additional hot-pluggable USB mouse port on front panel (also functions as USB peripheral port) Audio support (speakers) Superior video quality – up to 1280 x 1024 @75 Hz; DDC, DDC2, DDC2B Standard 105-key keyboard; Sun keyboard emulation Multiplatform support – Windows, Linux, Mac, and Sun Compatible with most ATEN DVI KVM Switches Adjustable depth to fit within the rack Firmware upgradeable Console lock – enables the console drawer to remain securely locked away in position when not in use DDC emulation – video settings of each computer are automatically adjusted for optimal output to the monitor Keyboard Language support: English(US); English(UK); German;German(Swiss); French; Spanish; Traditional Chinese; Japanese; Korean;Swedish; Italian; Russian; Hungarian; Greek. More information anout Easy Rack Mount, click here Computer Connections 1 Console Selection Hotkey Connectors External Console Ports Keyboard 1 x USB Type A Female (White) Mouse 1 x USB Type A Female (White) Monitor 1 1 x DVI-D Female (White) Monitor 2 1 x HDB-15 Female (Blue) Speaker 1 x Mini Stereo Jack Female (Green) KVM Ports KB / Mouse 1 x USB Type B Female (White) Monitor 1 x DVI-I Female (White) Speaker 1 x Mini Stereo Jack Female (Green) External Mouse / Peripheral 1 x USB Type A Female (Black) Power 1 x 3-prong AC Socket Switches Reset 1 x Semi-recessed Pushbutton Power 1 x Rocker F/W Upgrade 1 x Slide LCD Power 1 x Pushbutton LCD Adjustment 4 x Pushbutton LEDs Power 1 (Green) Lock Num 1 (Green) Caps 1 (Green) Scroll 1 (Green) Emulation Keyboard / Mouse USB Video 1280 x 1024@75Hz, DDC2B I/P Rating 100 – 240VAC; 50-60Hz; 1A Power Consumption 120V, 24.6W / 230V, 25.4W Environment Operating Temp. 0–50°C Storage Temp. -20–60°C Humidity 0-80% RH, Non-condensing Physical Properties Housing Metal Weight 13.09 kg Dimensions ( D x W x H ) 58.92×48.50×4.40cm 1x CL6700 DVI LCD Console with Standard Rack Mount Kit 1x Custom USB DVI KVM Cable Set 1x Power Cord 1x Firmware Upgrade Cable 1x User Instructions
