CL6700MW Aten USB & DVI Full HD Console

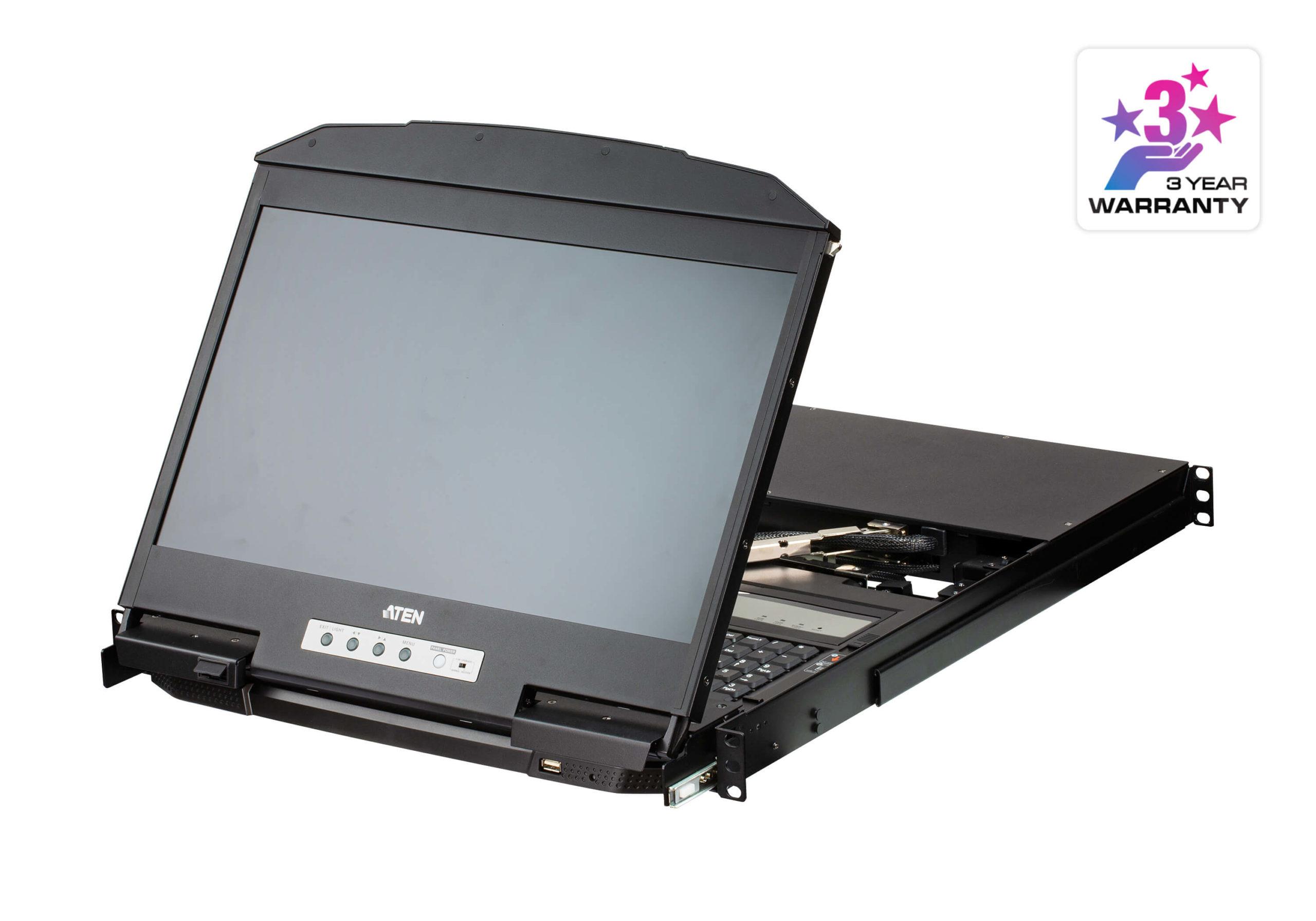

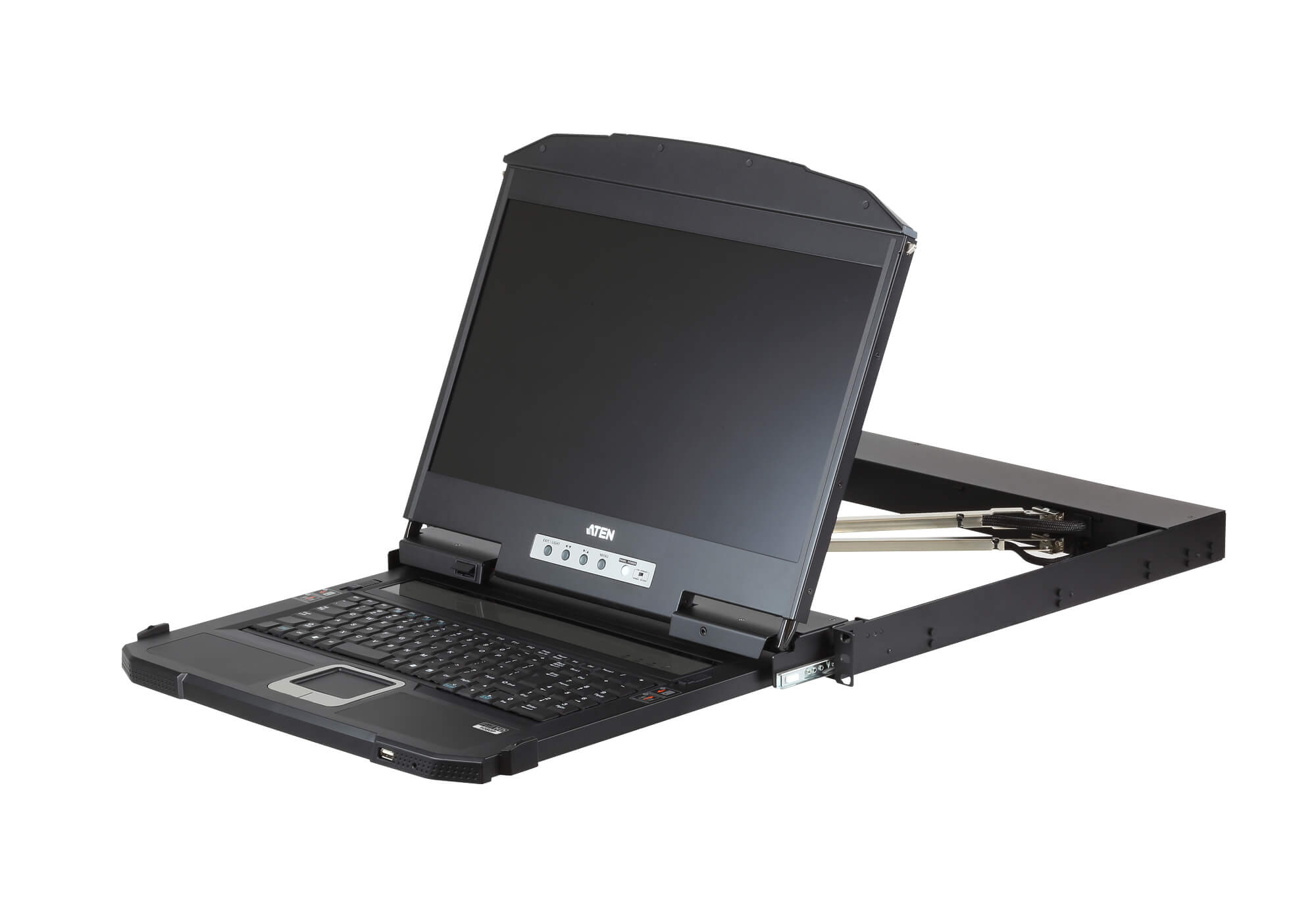

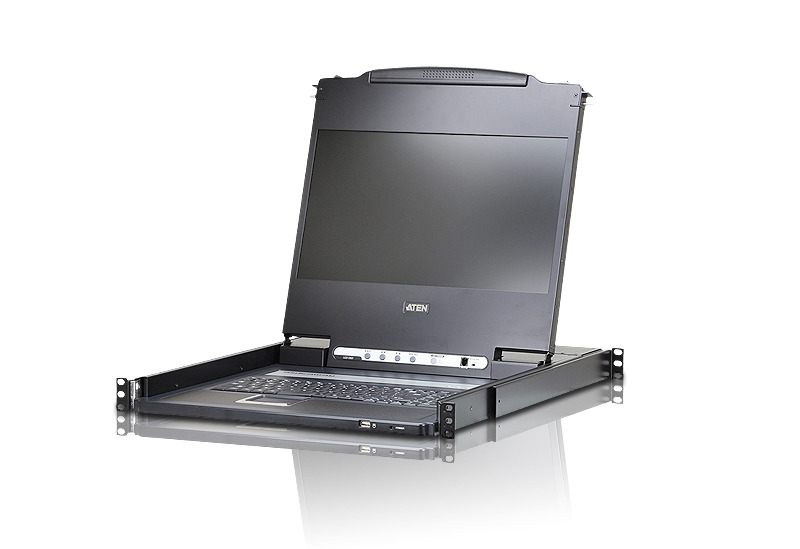

Description The CL6700MW DVI Full HD LCD Console is a single rail KVM console featuring a 17.3’’ LED-backlit high-definition widescreen with an integrated keyboard and touchpad in a 1U rack-mountable sliding housing. The CL6700MW’s console provides front end access to compatible KVM switches utilizing space with a module that closes fl at and slides into the rack. The single rail design allows the LCD monitor, keyboard and touchpad to operate independently of each other. Multiple video ports allow the console to connect one of three types of video sources: VGA, DVI, or HDMI – for the console and CPU connection. For added convenience, the full HD console provides two HDMI ports that allow for connecting a high-defi nition monitor to the console port, and/or an HDMI compatible switch to the KVM port. The CL6700MW features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (keyboard, mouse and DVI, HDMI or VGA monitor) are provided on the rear panel. Server rooms already installed with compatible DVI KVM switches will have the advantage of easy access, an additional console, and a built-in space saving sliding module, without having to purchase a KVM switch.The CL6700MW includes two mini stereo ports for connecting audio speakers. DiagramFeaturesSpecificationsPackage Contents Integrated KVM console with a 17.3’’ LED-backlit Widescreen Full HD LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack Standard rack mount kit included – optional Easy Rack Mounting (single person installation) rack mount kit available (requires separate purchase) Supports an external console with USB / DVI / VGA / HDMI connectors Additional hot-pluggable USB mouse port on front panel (also functions as USB peripheral port) Superior video quality – up to 1920 x 1080 @ 60Hz; DDC, DDC2, DDC2B Audio support for connecting speakers Standard 105-key keyboard; Sun keyboard emulation Multiplatform support – Windows, Linux, Mac, and Sun Adjustable depth to fi t within the rack Firmware upgradeable Console lock – enables the console drawer to remain securely locked away in position when not in use DDC emulation – video settings of attached computers are automatically adjusted for optimal output to the monitor Keyboard Language support: English(US); English(UK); German;German(Swiss); French; Spanish; Traditional Chinese; Japanese; Korean;Swedish; Italian; Russian; Hungarian; Greek Nore information about Easy Rack Mounting, click here Computer Connections 1 Console Selection Hotkey Connectors External Console Ports Keyboard 1 x USB Type A Female Mouse 1 x USB Type A Female Monitor 1 x DVI-D Female (White) 1 x HDB-15 (VGA) Female (Blue) 1 x HDMI Female (Black) Speaker 1 x Mini Stereo Jack Female (Green) KVM Ports Keyboard / Mouse 1 x USB Type B Female (White) Monitor 1 x DVI-D Female (White) 1 x HDB-15 (VGA) Male (Blue) 1 x HDMI Female (Black) Speaker 1 x Mini Stereo Jack Female (Green) External Mouse / Peripheral 1 x USB Type A Female (Black) Firmware Upgrade 1 x RJ-11 Female (Black) Power 1 x 3-prong AC Socket Switches Reset 1 x Semi-recessed Pushbutton Power 1 x Rocker F/W Upgrade 1 x Slide LCD Power 1 x Pushbutton LCD Adjustment 4 x Pushbutton LEDs Power 1 (Green) Lock Num 1 (Green) Caps 1 (Green) Scroll 1 (Green) Emulation Keyboard / Mouse USB Video 1920 x 1080 @ 60Hz, DDC2B I/P Rating 100–240VAC; 50–60Hz; 1A Power Consumption 120V,19.4W / 230V,19.4W Environment Operating Temp. 0-40°C Storage Temp. -20-60°C Humidity 0 – 80% RH, Non-condensing Physical Properties Housing Metal Weight 11.38 kg Dimensions (L x W x H) 58.92 x 48.00 x 4.40 cm 1x CL6700MW DVI Full HD LCD Console with Standard Rack Mount Kit 1x Custom USB DVI KVM Cable Set 1x Power Cord 1x Firmware Upgrade Cable 1x User Instructions
