DS-1LC1SCA2C-200B COAXIAL CABLE ( 307400102 )

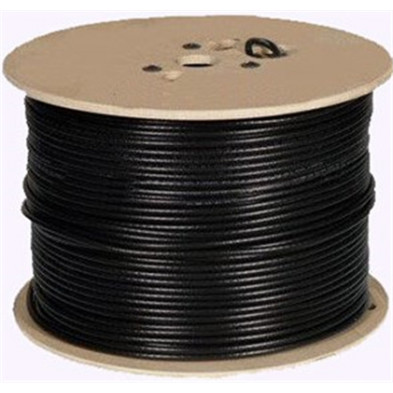

DS-1LC1SCA2C-200B COAXIAL CABLE ( 307400102 ) 200m RG59 coaxial cable with power cable l Conductor material of Coaxial cable is OFC(Oxygen Free Copper) l Braiding material of Coaxial cable is CCA(Copper-clad Aluminum) l Conductor material of power cable is OFC(Oxygen Free Copper) l VW-1 flame retardant rating l Excellent anti-interference performance l Excellent anti-aging performance Coaxial Cable (Driver) Material: OFC (Oxygen Free Copper) (Driver) Wire Gauge: 20AWG (Conductor) Diameter: 0.81 ± 0.01mm (Insulation) Material: FPE (Insulation) Diameter: 3.66 ± 0.05mm (Tape) Material: Shielding Aluminum Foil, 15mmwidth (Tape) Thickness: 0.04mm (Braid) Material: CCA (Copper-clad Aluminum) (Braid) Braiding Standard: 8 * 16 * 0.12mm (Braid) Braiding Density: 95 ± 1% (Jacket) Material: PVC (Jacket) Average Thickness: ≥0.65mm (Jacket) Diameter: 6.10 ± 0.2mm Impedance: 75ohms Power Cable (Driver) Material: OFC (Oxygen Free Copper) (Driver) Quantity: two (Conductor) Diameter: 7 * 0.385 ± 0.01mm (Insulation) Material: PE (Flame Retardant) (Insulation) Diameter: 1.8 ± 0.1mm (Jacket) Material: PVC (Jacket) Average Thickness: ≥0.3mm general Length: 200m Color: Black Operating Temperature: -40-80ºC Storage Temperature: -20-70ºC
